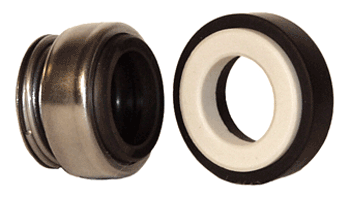

Typ G5

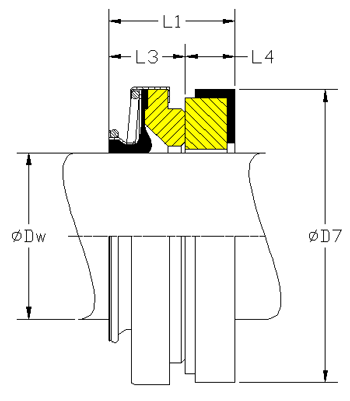

 Dw L1 L3 L4 D7
8 19,0 11,0 8,0 26,0
10 19,0 11,0 8,0 26,0
11 19,0 11,0 8,0 26,0
12 19,0 11,0 8,0 26,0
12a 21,0 13,0 8,0 26,0
12b 21,0 13,0 8,0 35,0
13 21,0 13,0 8,0 26,0
14 21,0 13,0 8,0 35,0
15 21,0 13,0 8,0 38,0
16 21,0 13,0 8,0 38,0
16a 21,0 13,0 8,0 42,0
17 21,0 13,0 8,0 42,0
18 21,0 13,0 8,0 42,0
19 21,0 13,0 8,0 42,0
20 21,0 13,0 8,0 42,0
20a 23,0 13,0 10,0 45,0
22 23,0 13,0 10,0 45,0
23 24,0 14,0 10,0 50,0
24 24,0 14,0 10,0 50,0
25 24,0 14,0 10,0 50,0
28 25,0 15,0 10,0 57,0
30 25,0 15,0 10,0 57,0
32 25,0 15,0 10,0 57,0
35 26,0 16,0 10,0 63,0
38 29,0 17,0 12,0 68,0
40 29,0 17,0 12,0 68,0
45 32,0 20,0 12,0 73,0
50 38,0 23,0 15,0 88,0
60 45,0 30,0 15,0 110,0
65 45,0 30,0 15,0 110,0
70 47,0 32,0 15,0 110,0


Einsatzgrenzen: Dw:
P1:
T:		 8 bis 70 mm
10(12) bar
-20 bis 140°C
T abhängig vom Elastomer
Vg: 10 m/s
Gleitflächen: Q2:
V:
B: 		SIC-SI
Al-Oxid
Kohle K
Metallteile: CrNiMo-Stahl
Nebendichtungen: Alle Elastomere
